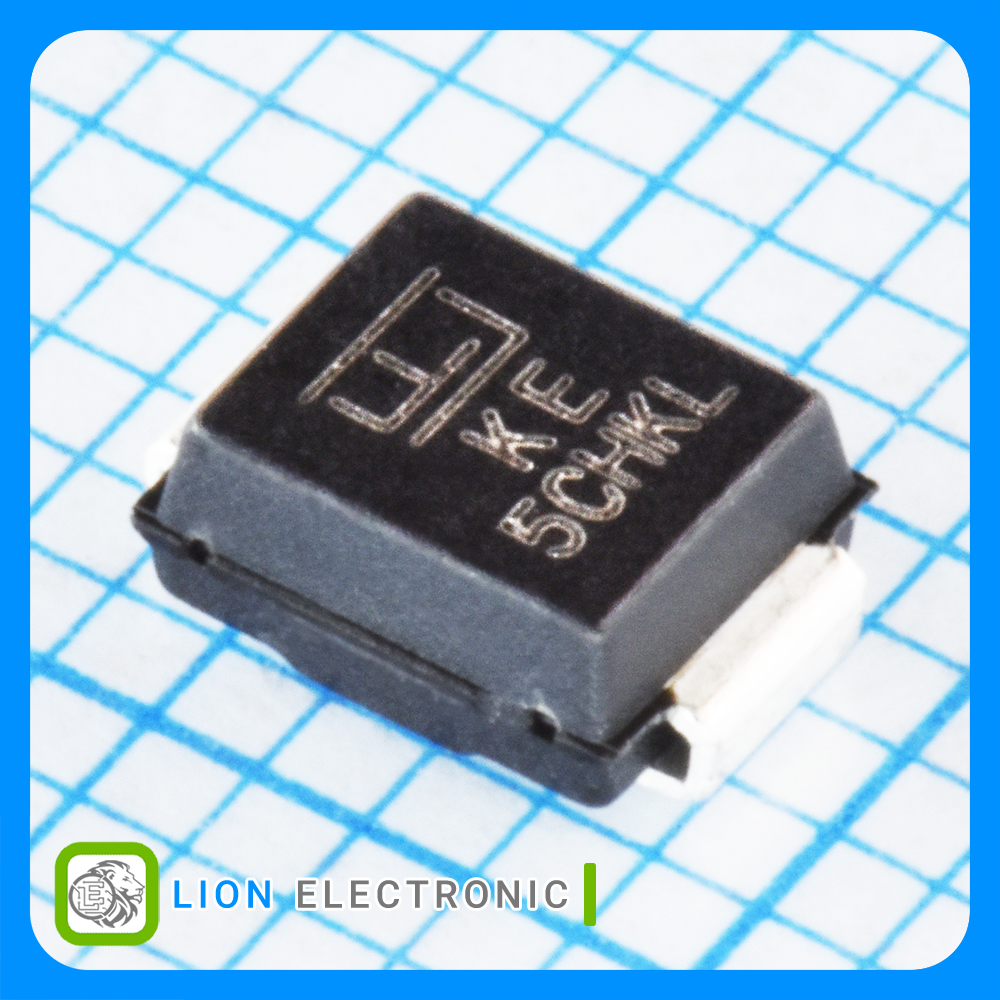

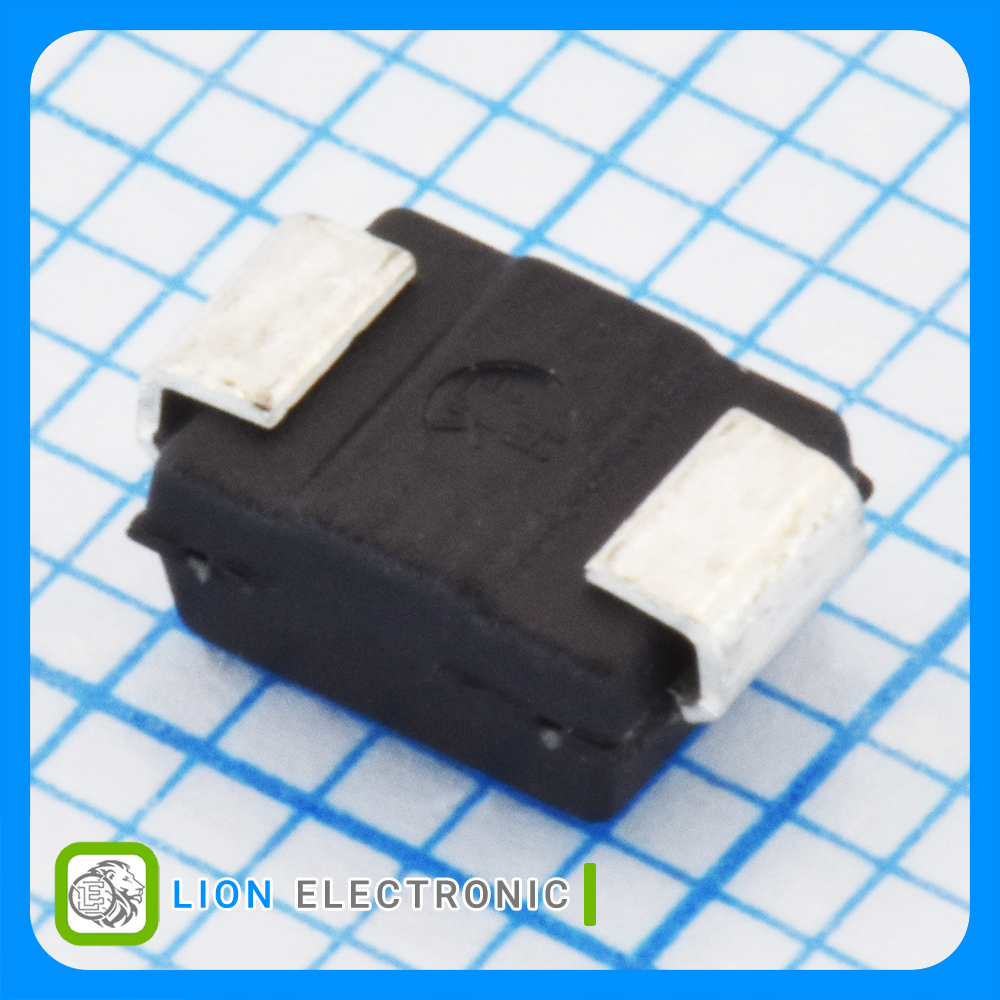

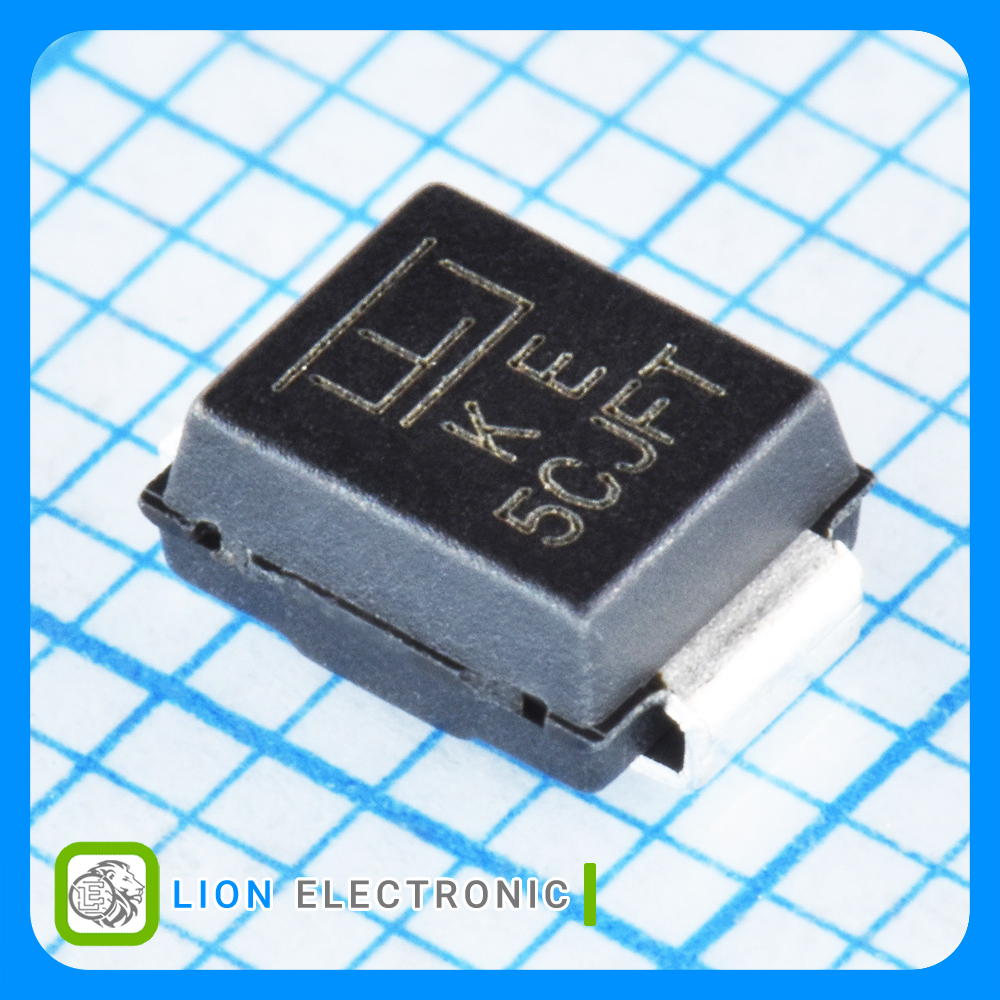

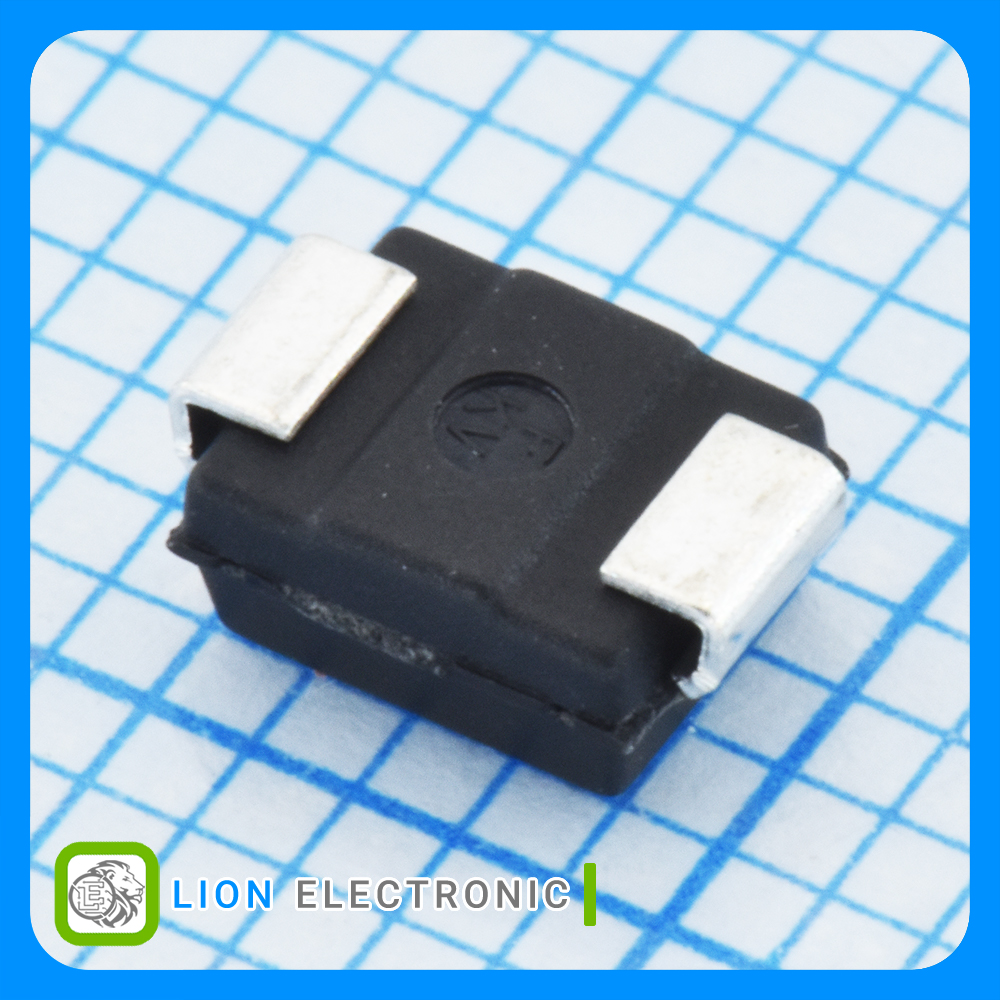

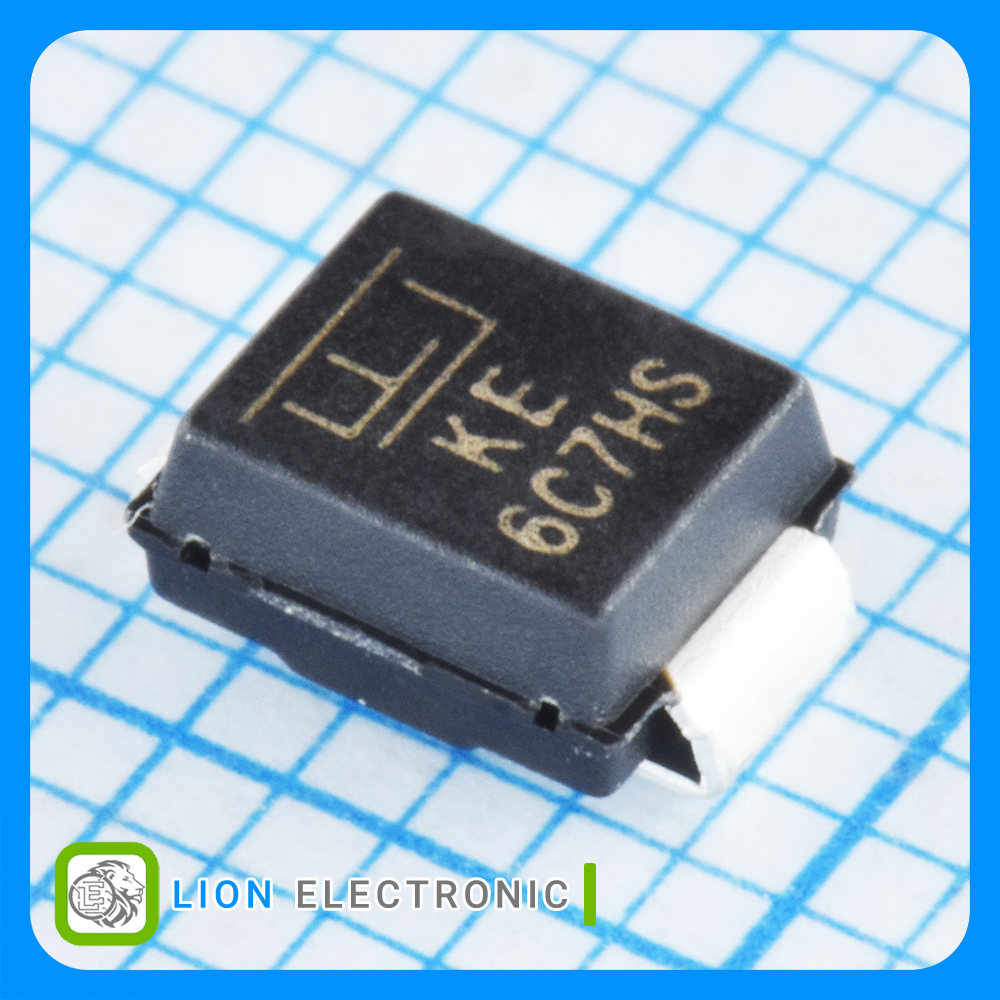

SMBJ5.0A
SMBJ5.0A
Part Number
2240
Lion Part
Datasheet
Littelfuse Manufacture
دیود TVS یک جهته 5 ولت با بیشنه پالس جریان 65.3 آمپر با پکیج SMB
TVS Diode Uni-directional 5V SMB
مشخصات SMBJ5.0A
SMBJ5.0A
Part Number
1
Number of Channels
-65C
Minimum Operating Temperature
30kV
Vesd - Voltage ESD Air Gap
5V
Working Voltage
SMD/SMT
Termination style
Reel
Packaging
30kV
Vesd - Voltage ESD Contact
Unidirectional
Polarity
9.2V
Clamping Voltage
6.4V
Breakdown Voltage
600W
Pppm - Peak Pulse Power Dissipation
+150C
Maximum Operating Temperature
ESD Suppressors / TVS Diodes
Product Type
N/A
Cd - Diode Capacitance
65.3A
Ipp - Peak Pulse Current
DO-214AA (SMB)
Package-Case
